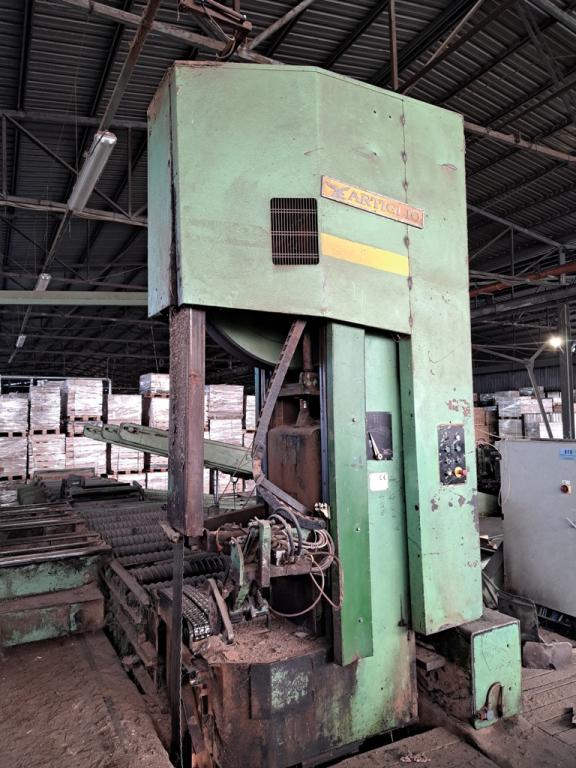

Vertical band saw Mod. ST 140 year 2000 CE compliant
Heavy gauge steel base
Flywheel diameter 1400 mm
Flywheel band 190 mm
Blade size 206x1.47 or 1.65x9750
Hydraulic blade tensioner
Electric tilt of the upper flywheel
Hydraulic disc brake on the lower flywheel
Blade and upper flywheel guard
Automatic diesel pump for lubricating the blade and flywheels with timer
Multiple chain belt on the log saw base
Circular Cleaner. It is used to remove any foreign bodies present on the surface layer of the log along the entire cutting line
Main motor power 75 or 100 Kw
Star-delta starting electrical panel.

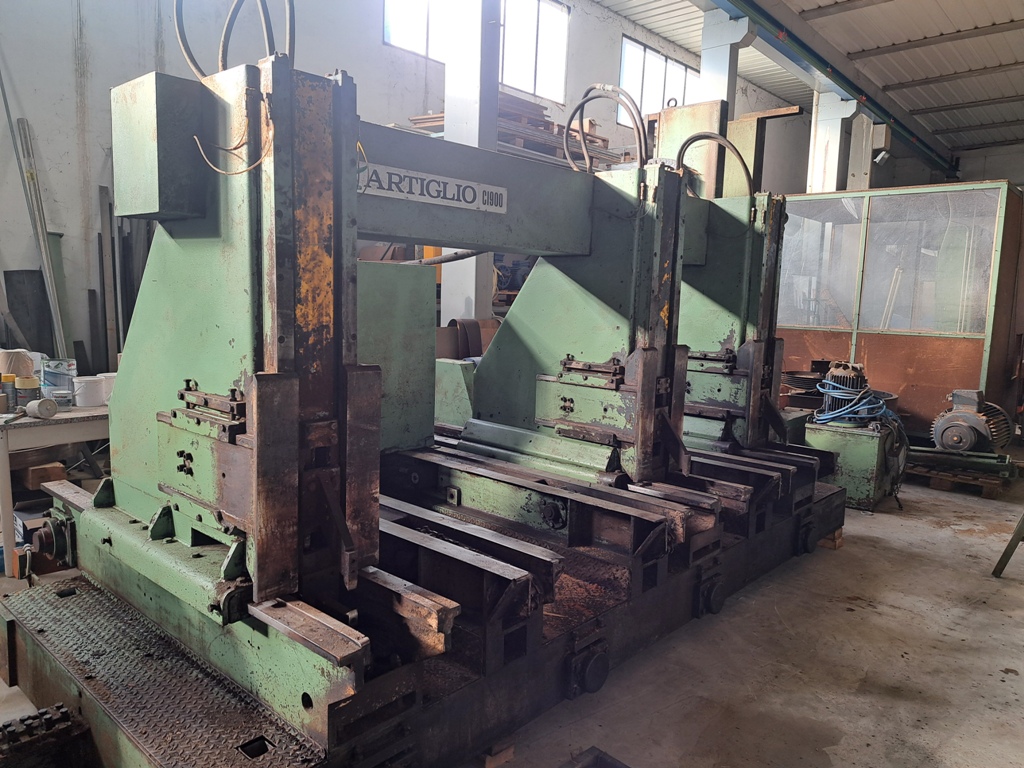

Hydraulic Log Carrier Cart Artiglio Model CI 900
3 hydraulic clamps - Hydraulic closing of the hooks
Cross opening of the clamps from the blade mm 900
Max. opening of the hooks mm. 900
Distance of the clamps 1100 - 1800 mm
Hydraulic output of the hook from 15 to 125 mm
Electronic thickness divider connected to an axis control for insertion of preset thicknesses and cutting programs model MUDATA
Electro-hydraulic chain log turners
Hydrostatic advance
Centralized and automated lubrication system
Double-station control unit with chair: all the functions of the carriage are controlled by two multifunction manipulators. Free seats for the installation of completion mechanizations. Electric cables - Flat and profiled rails

BFB mechanization

Log loader with 3 shoulders, length 5 meters with chain center distance 1400 – 1100 mm
Hydraulic loading tank for the separation and loading of the log onto the wagon

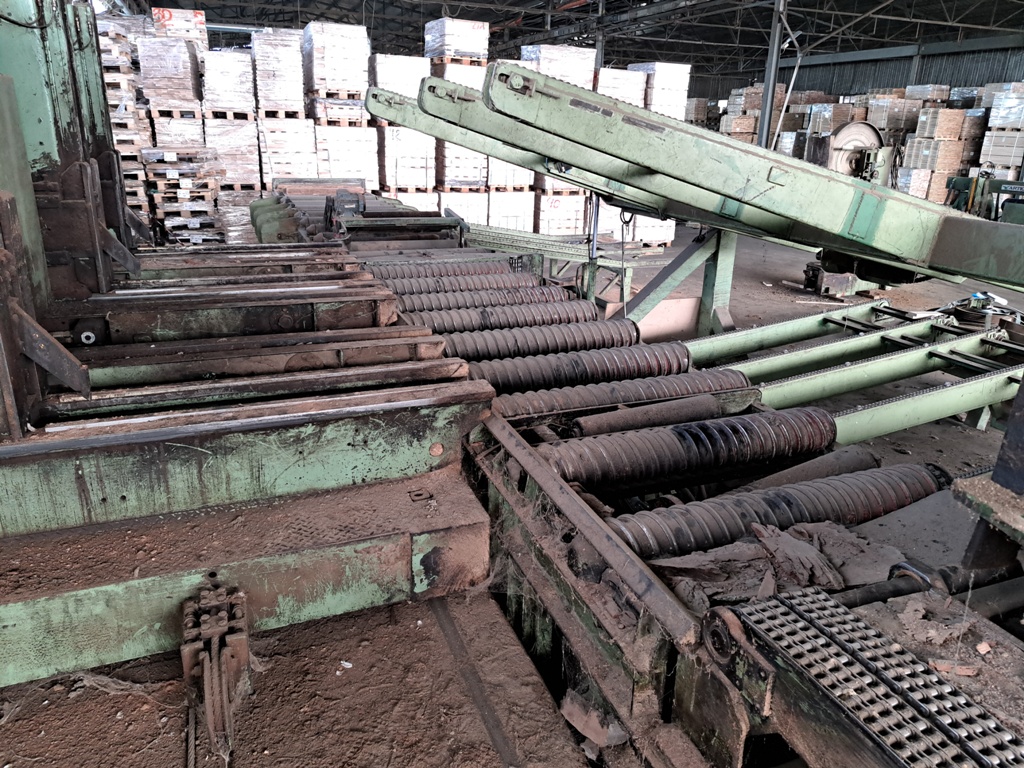

Unloading roller conveyors with thick structure
1st Roller conveyor composed of n.02 pneumatic Flippers to support the table during cutting
Retractable unloading chain with the possibility of unloading up to 4.5 meters
Roller width 1300 mm
Brush

Log recovery chains

2nd Unloading roller conveyor with transfer chains and R – S unloading
Total length 5 meters
N.04 unloading chains with distances 1000 – 600 – 900 mm
Width 1300 mm
