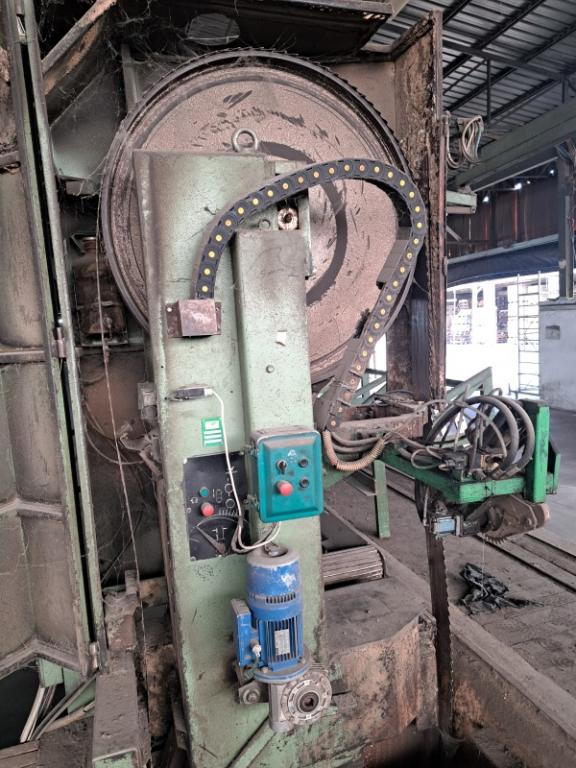

Column Artiglio ST 115
Flywheel diameter 1150 mm.
140 mm flywheel band for blade width 150x1.2x7900
Automatic blade tensioner with input safety sensor
Both the flywheels and the blade are lubricated with naphtha contained in special trays equipped with absorbent felt and arranged at the key points of the machine.
Square protection casing with safety guard
Complete with 50 Hp (37 Kw) V.380/50 main engine with automatic star-delta starting,

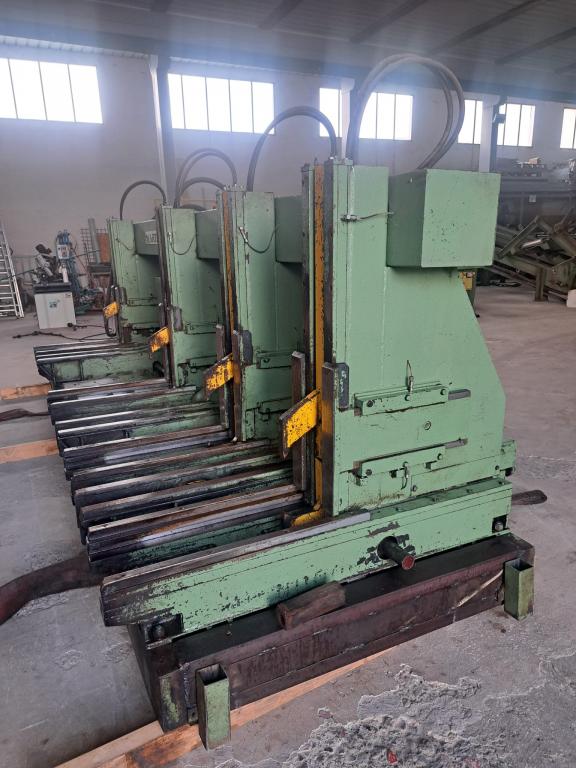

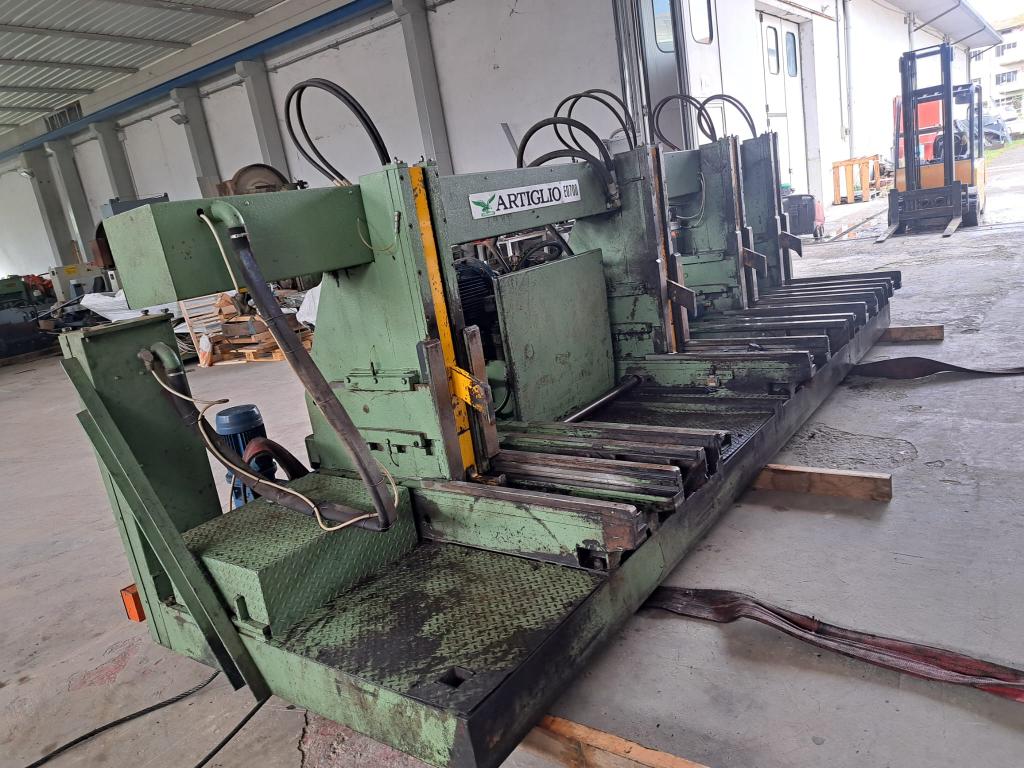

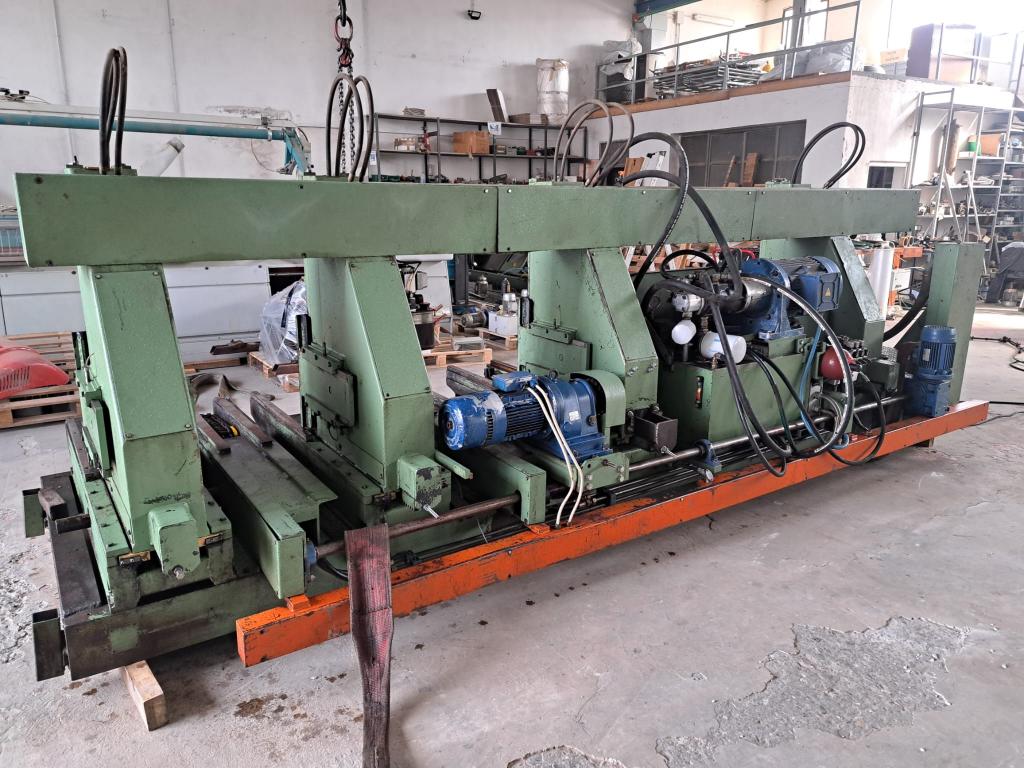

Artiglio Hydraulic Log Trolley Model EO700
4 hydraulic vices
Transversal opening of the vice blade 800 mm
Max. opening hooks mm. 700
Hydraulic closing of the hooks
Hydraulic hook output from 15 to 125 mm
Electronic thickness divider connected to an axis control for insertion of preset thicknesses and cutting programs model Mod. EM 08
No. 3 electro-hydraulic chain log turners, inclination up to 90° to facilitate tipping and rotation of the log
Hydrostatic advancement
Centralized and automated lubrication system

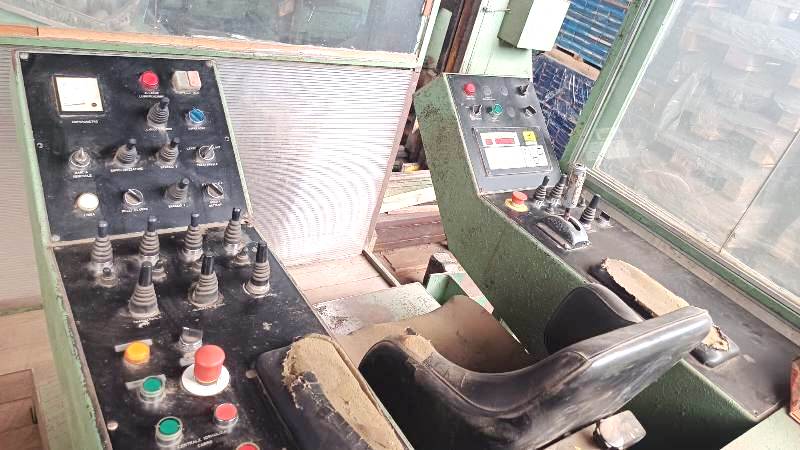

Double station control unit with chair: all the functions of the wagon are controlled using two multifunction manipulators. Free locations for the installation of completion mechanization.
Electrical cables
Flat and profiled rails
Length of the wagon 5.50 m

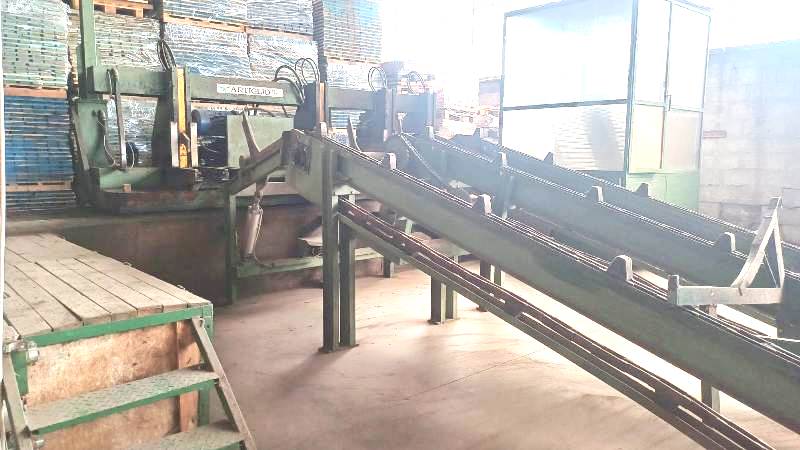

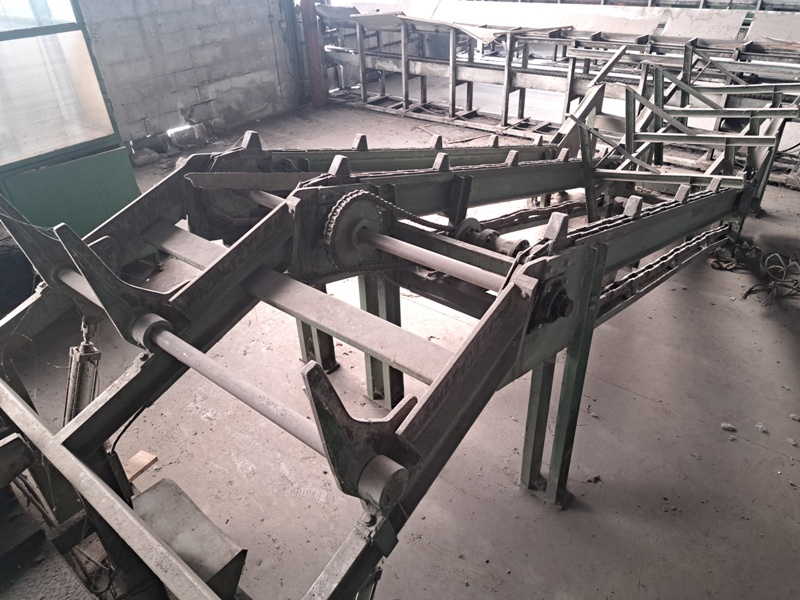

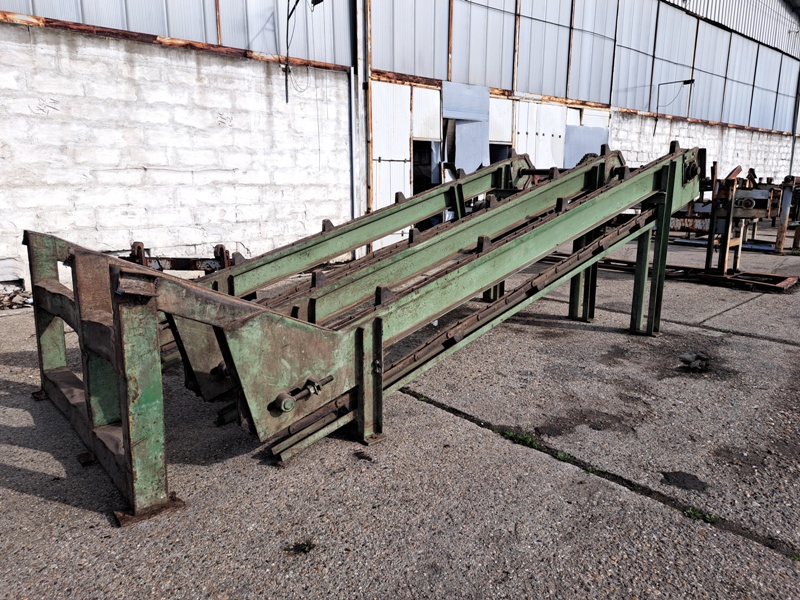

3-shoulder loading mechanization
150 pitch reinforced link load chains with idlers
Pneumatic balancer for accompanying the trunk onto the wagon
Planetary gearbox for greater pulling torque

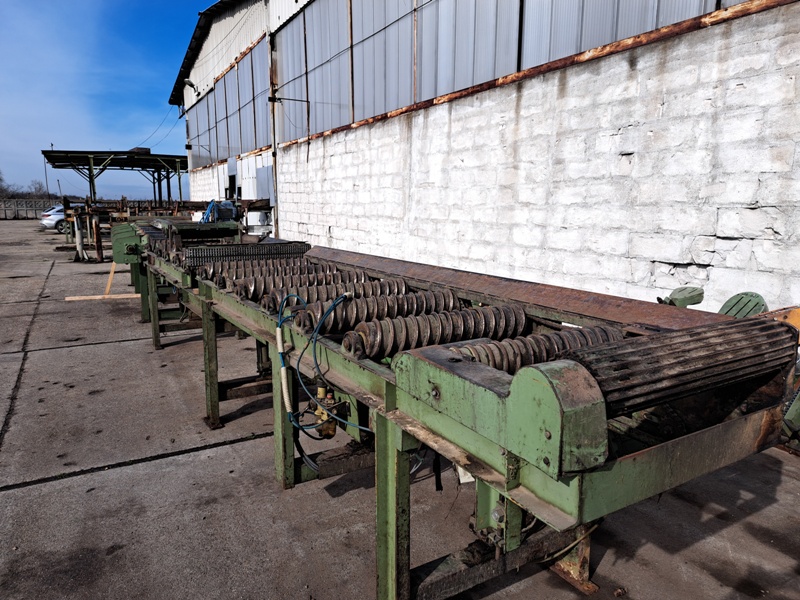

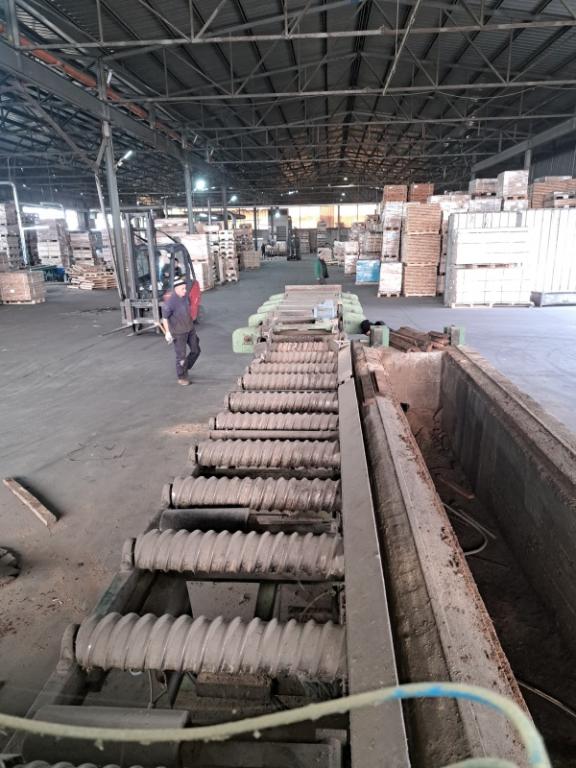

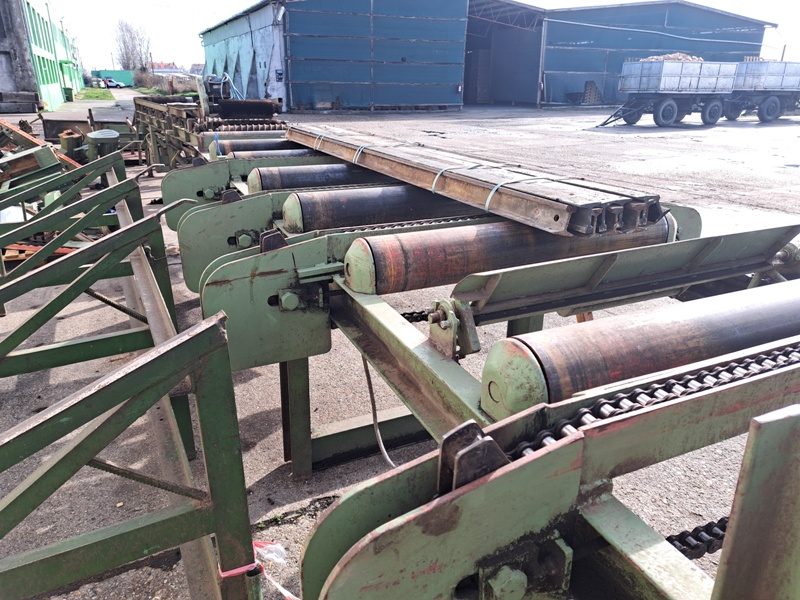

Motorized unloading roller conveyors with table gripper and unloading transfer chains.
