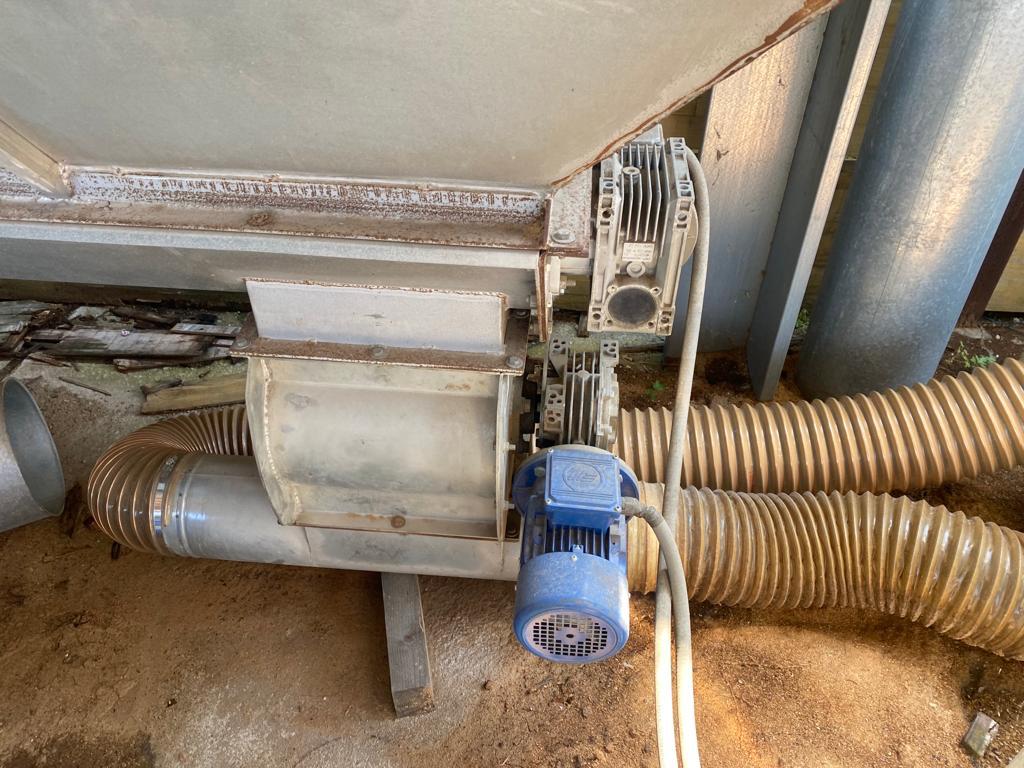

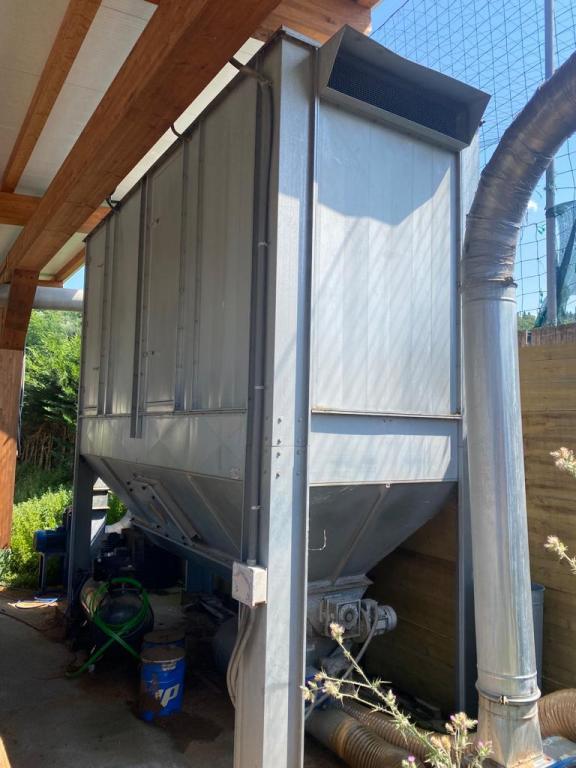

Static bag filter (Substation) with screw and rotary valve
Filtering surface m2 108
Flow rate m3/h 10,0000
N° 96 Cotton sleeves diam.200 length 1600 mm

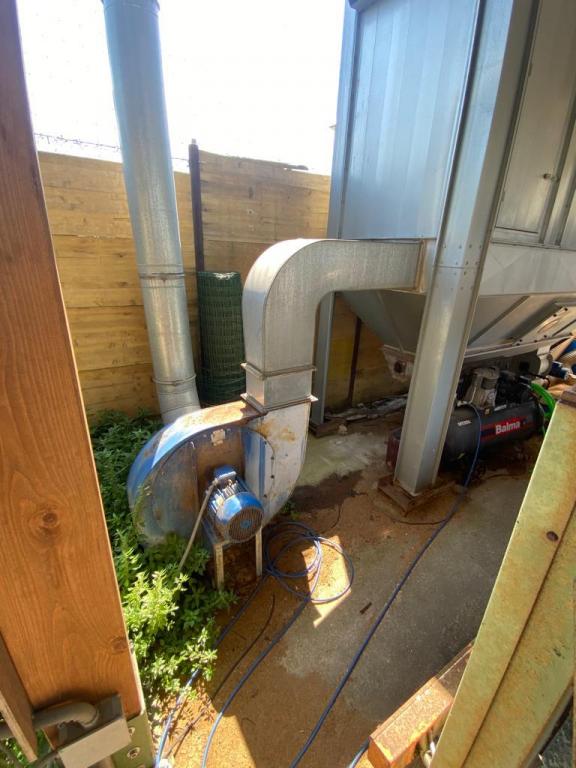

Main suction motor power 7.5 kW (HP 10) V.380/660
Transfer suction power onto the container Kw 4
Automatic shaker for cleaning sleeves with 0.11 kW motor
Overall dimensions 4,060x1560xh3950 mm
Electrical panel included
