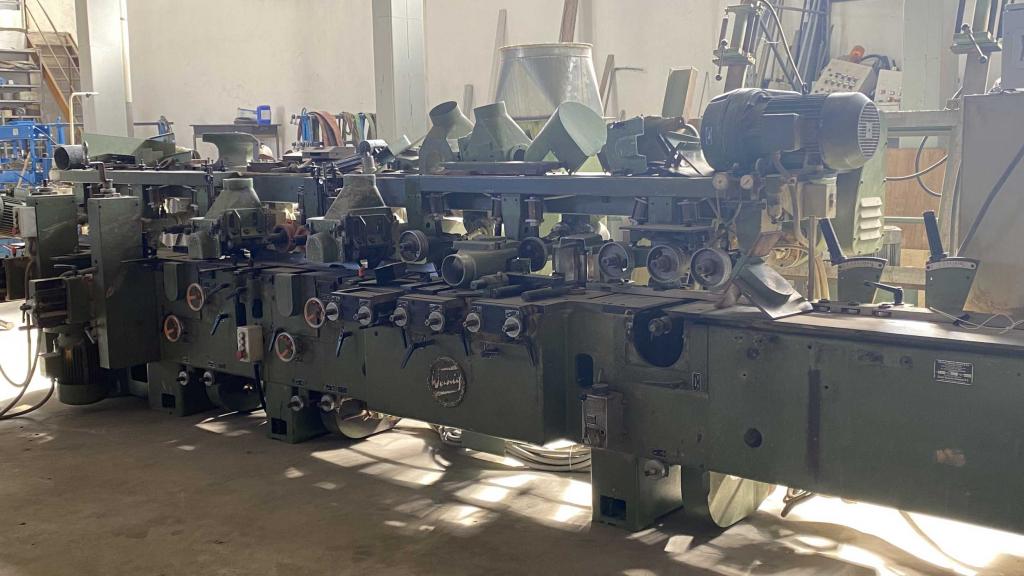

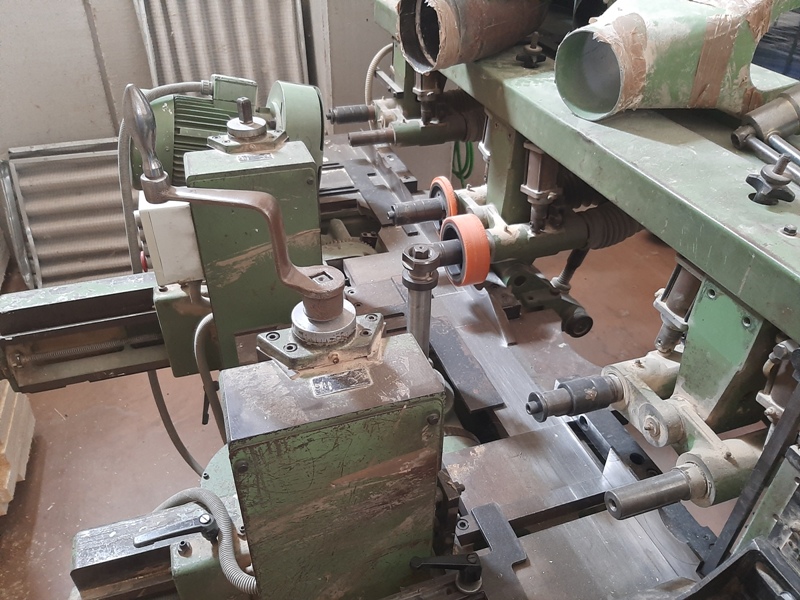

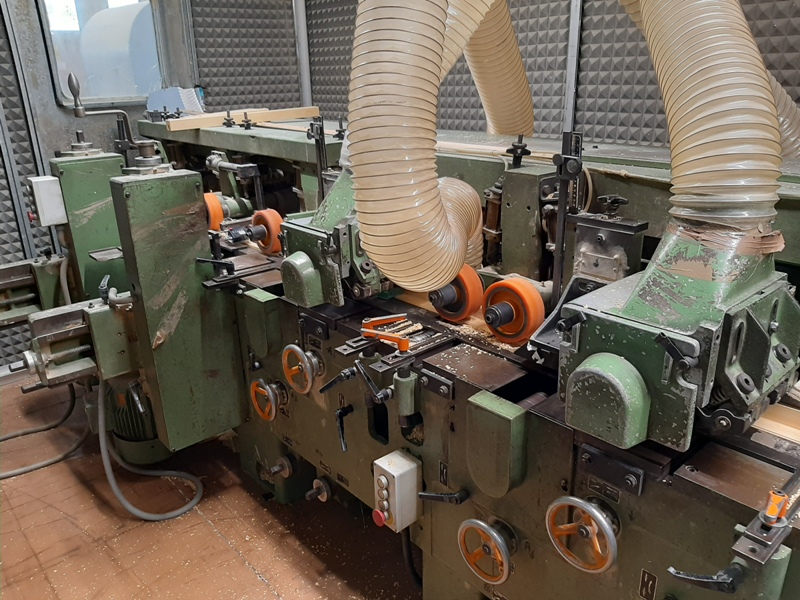

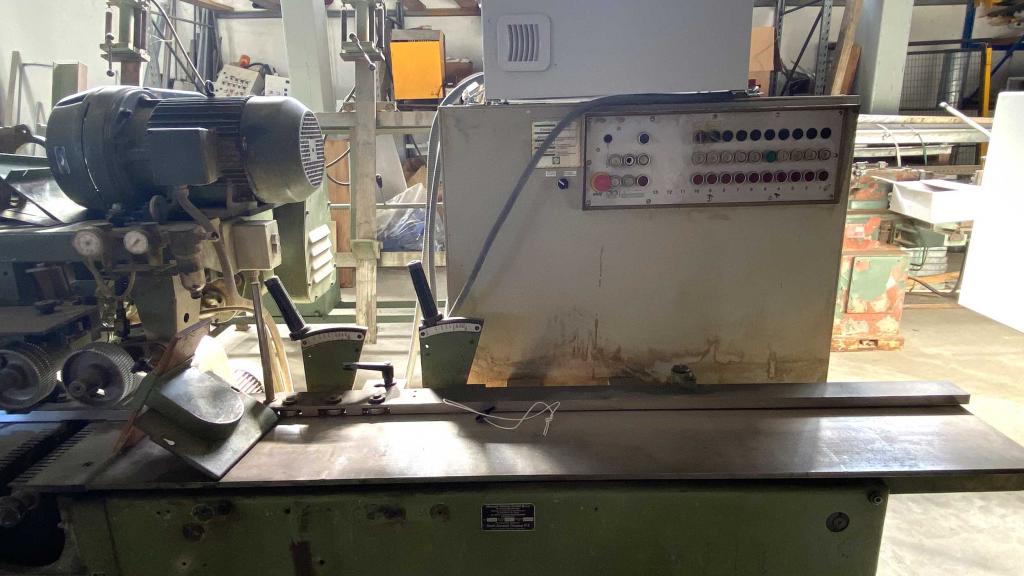

Moulding machine Weinig series UNIMAT U22  at 10 shafts
Width useful worktop mm 230
Height useful worktop mm 145
Length usefull worktop mm 2000
Power feeding engine kW 7,5 ( HP 10 ) with INVERTER
Rotation of shafts 6000 tours/min.
Diameter shafts mm 40
Speed od advance - adjustable 6-18 meters/ min
Pneumatic pressur of feeding rolls
Inclination of advance carriage
Length of the machine mm 6600
1st Bottom surface planner shaft kW 4 (HP 5,5)
2nd Right spindle moulder kW 4 (HP 5,5)
3rd Leftf spindle moulder kW 5,5 (HP 7,5)
4th Right spindle moulder kW 4 (HP 5,5)
5th Upper shaft kW 5,5 (HP 7,5)
6th Bottom shaft kW 4 (HP 5,5)
7th Upper shaft kW 5,5 (HP 7,5)
8th Bottom shaft kW 5,5 (HP 7,5)
9th Neutral shaft kW 5 (HP 7)
10th Neutral shaft kW 4 (HP 5,5)
Sound-proof cabin
