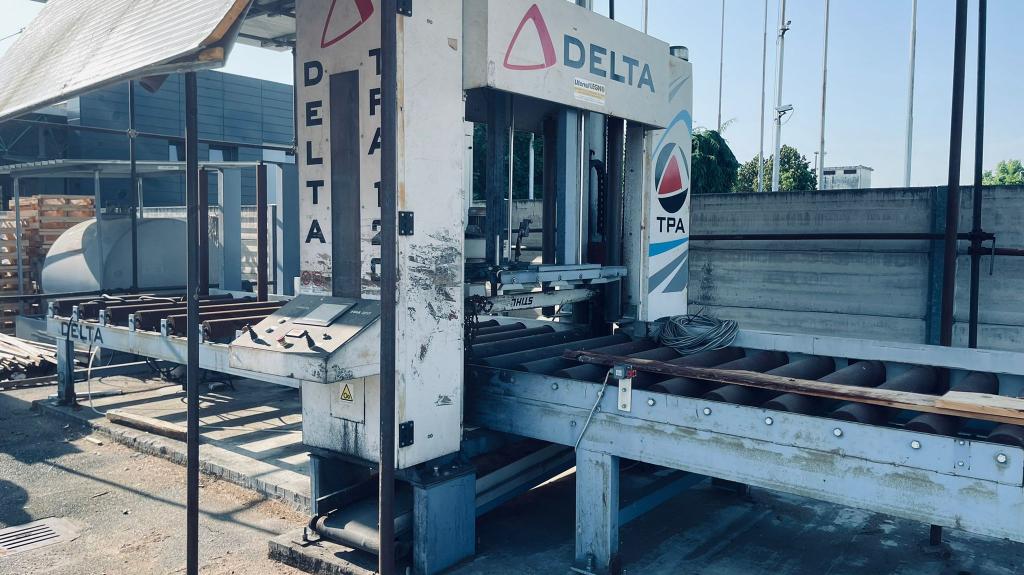

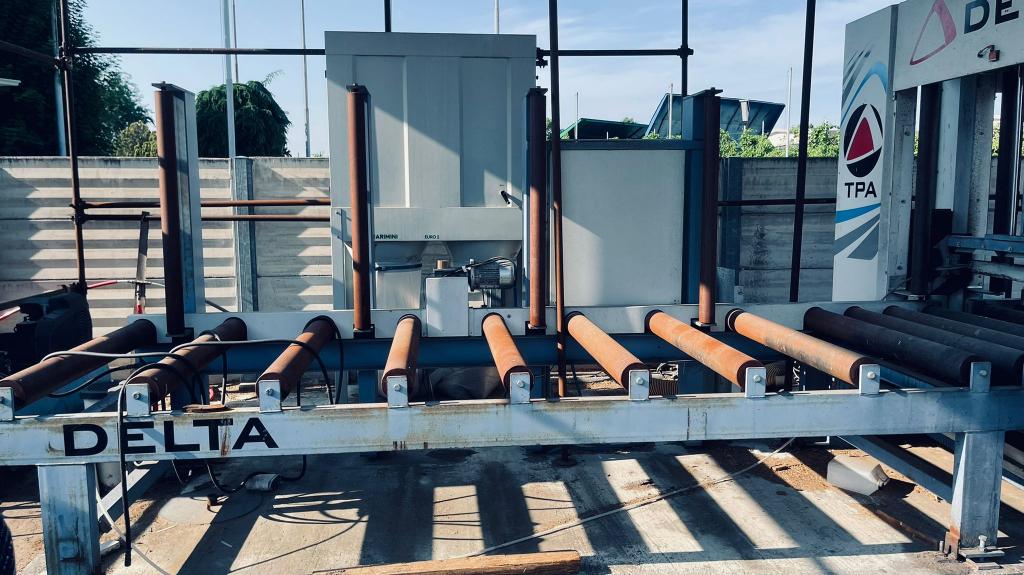

Automatic Pack-cutting Machine (TPA120)

Metallic structure consisting of appropriately sized steel profiles.

Cutting unit with chain-saw with maximum pack transit 1200mm wide and 1200mm high.

Cutting measure: minimum 600mm – maximum 4000mm.

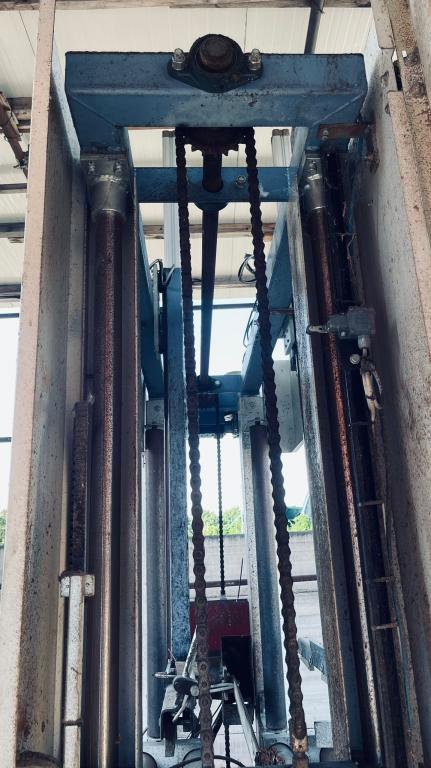

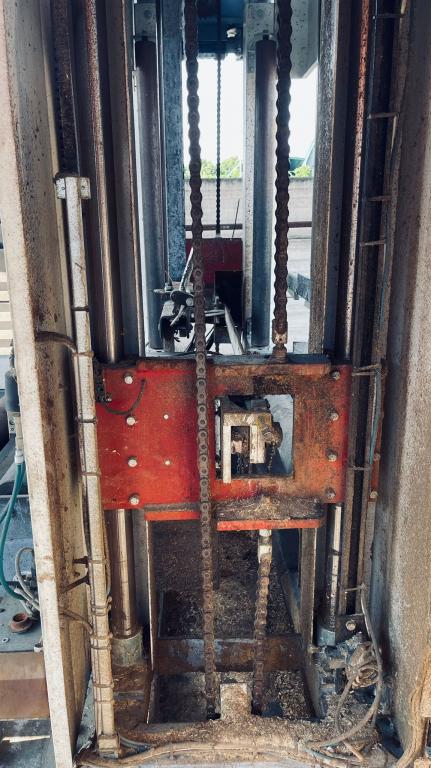

Horizontal chariot lifting system with column-structured lateral guides.

Upward stroke adjustable with speed variator.

Electronic cutting control.

Tensioning system to prevent the bar from bending sideways during the cutting phase.

System for tensioning of the cutting chain (Stihl) with stretch-recovering device.

Automatic chain lubricating system via pneumatic pump, with oil sight glass to check for oil shortage on board of the machine.

Suction pipe to evacuate the sawdust.

Front window to allow the operator to view and position the pack on the cutting axis.

Tolerance +/- 2mm

Cutting speed adjustable automatically via PLC

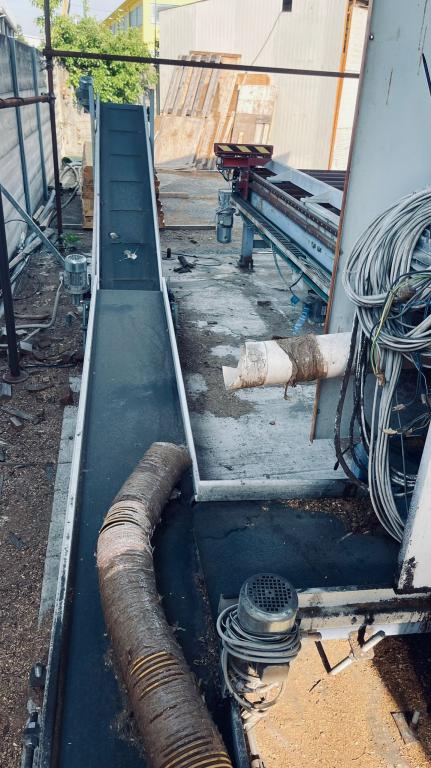

Sawdust evacuation belts

Required operators: 1.

From the brochure :The company reserves the right to change technical specifications and construction methods without notice.
