**************************  SOLD  ************************

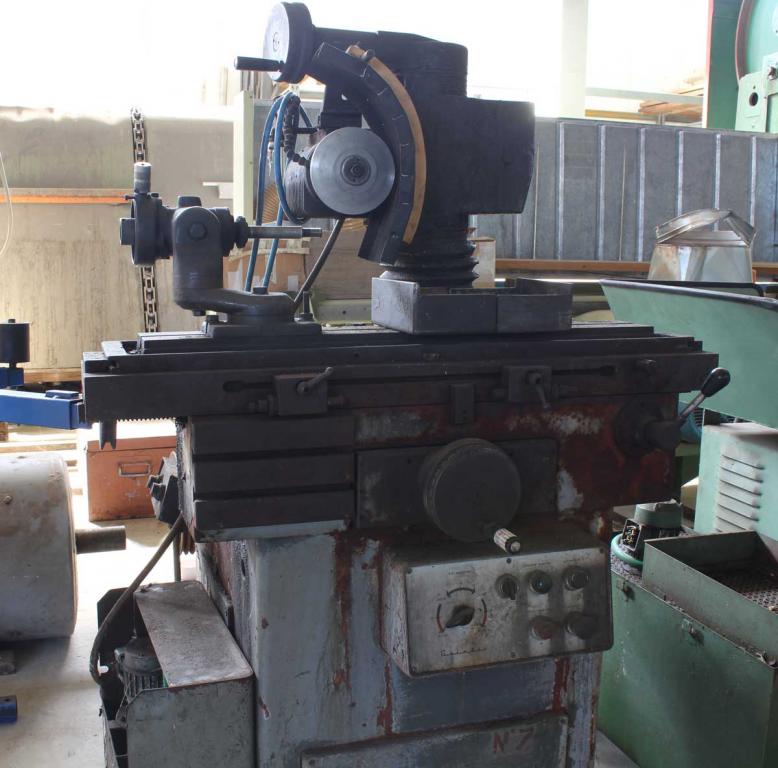

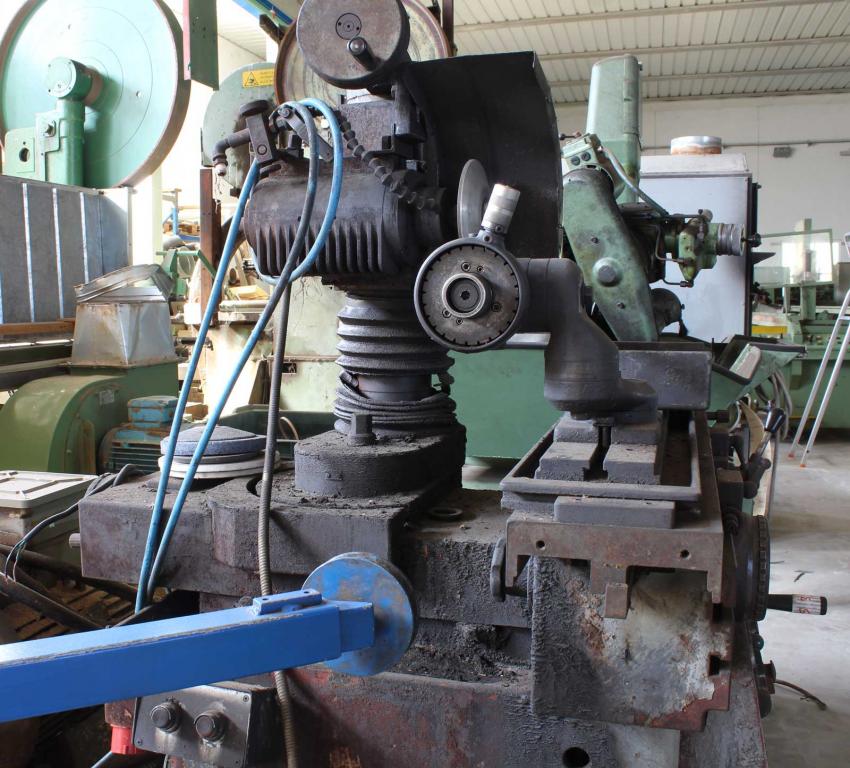

NESI GRINDER C 400 sharper is ideal for grinding cutters, disc cutters, T-cave cutters, tips, sharp, burins. Solid machine is of excellent manufacture made in Italy equipped with lubricant system of lubrication manual advance longitudinal table, transverse and rotating, protection screen with chip collectors and preparation of a vacuum cleaner, regulation vertical sharpening head.

Technical features of hydraulic sharpener NESI C 400:

type manual
cross travel 230 mm.
longitudinal travel 400 mm.
vertical travel 185 + 150 mm.
max. diameter ø 250 mm.
table dimensions 800 x 105 mm.
distance between centres 560 mm.
spindle range 3000 - 6000 rpm
max. grinding length 400 mm.
power 1,25 hp
weight 600 kg.
overall dimensions 1175 x 1150 x 1490 mm.
