***********************************  SOLD  **************************

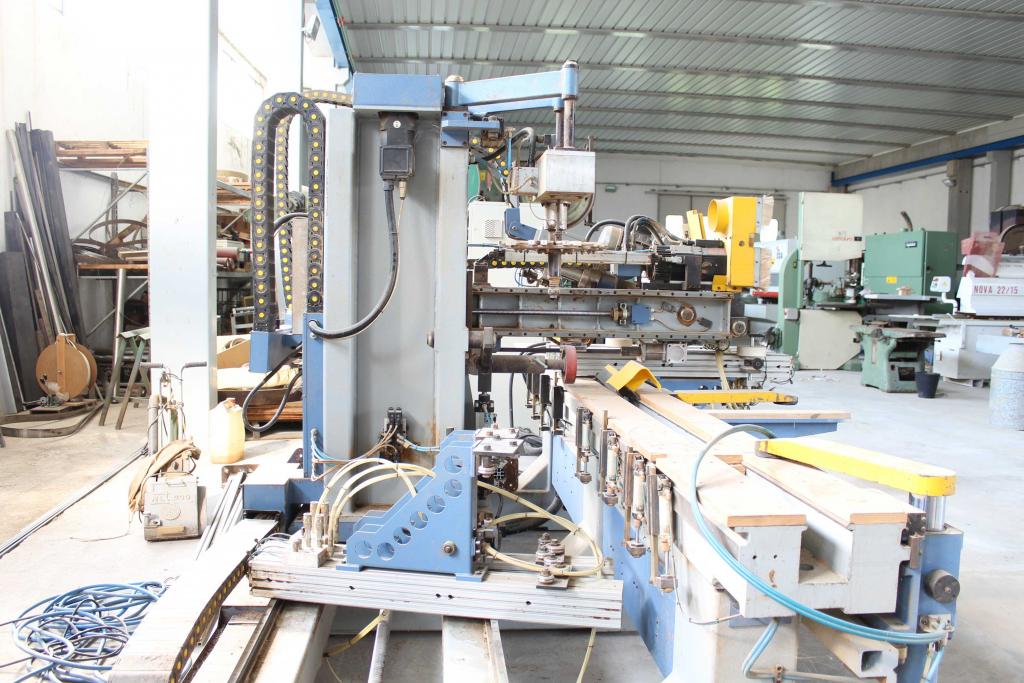

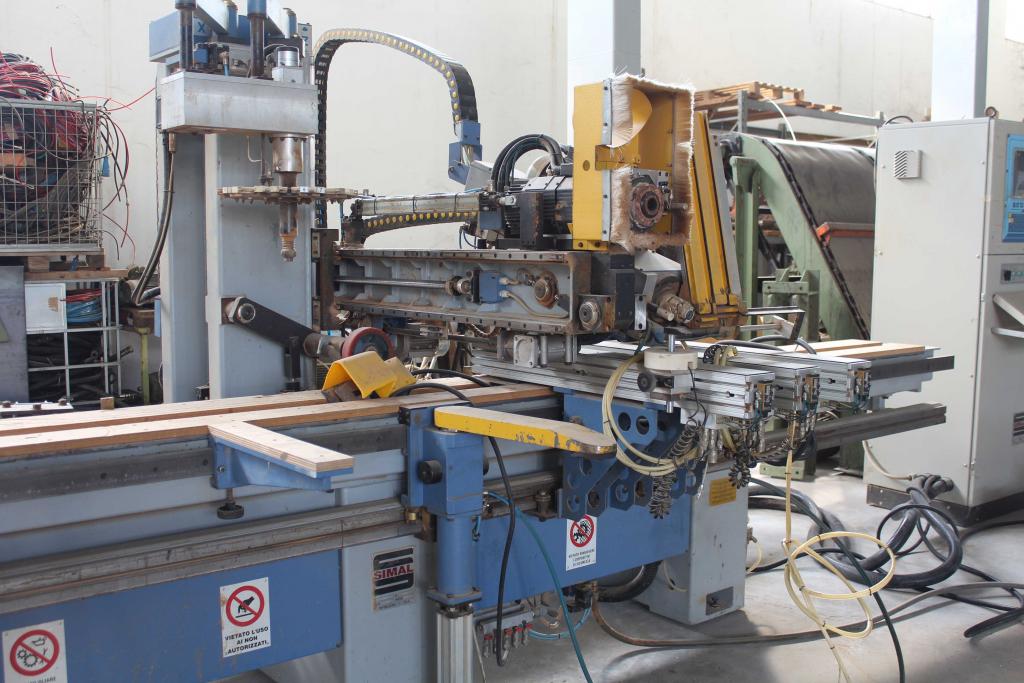

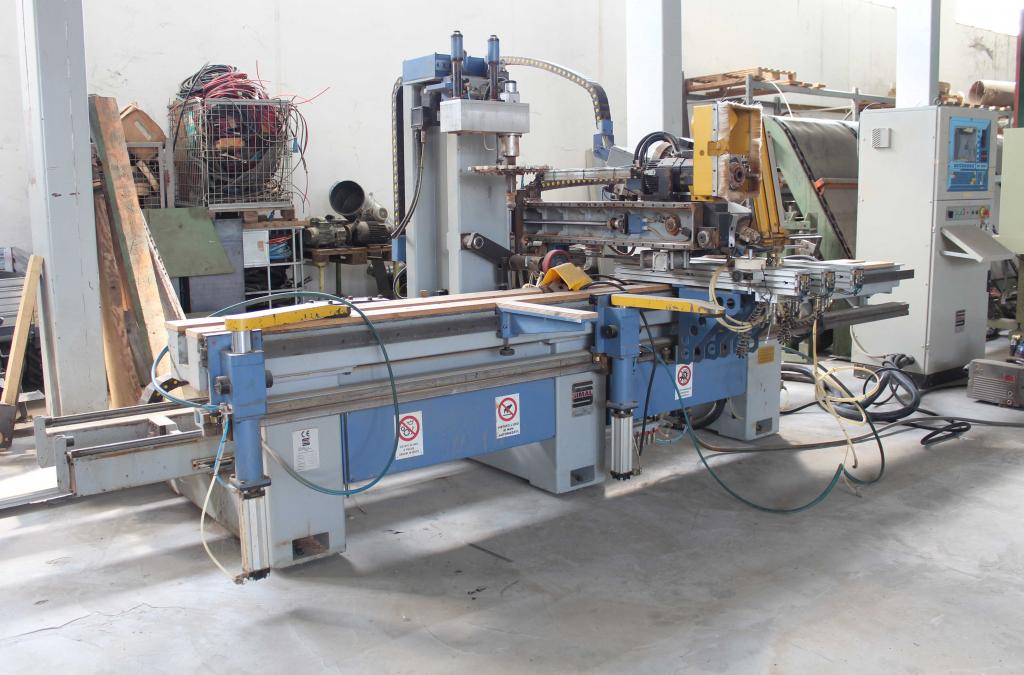

Boring, screwing, milling machine
Machine made for machining of materials in wood or extruded PVC, to insert any type of hinge both double and single and for milling of all types on wood and PVC

Linear milling for internal doors up to  mm 950 width (special supports);
Round for handle;
Round for key
Cave in door thickness
bores and screwing for hinge
Automatic tools change
The ex-user used made also shutters with this machine.

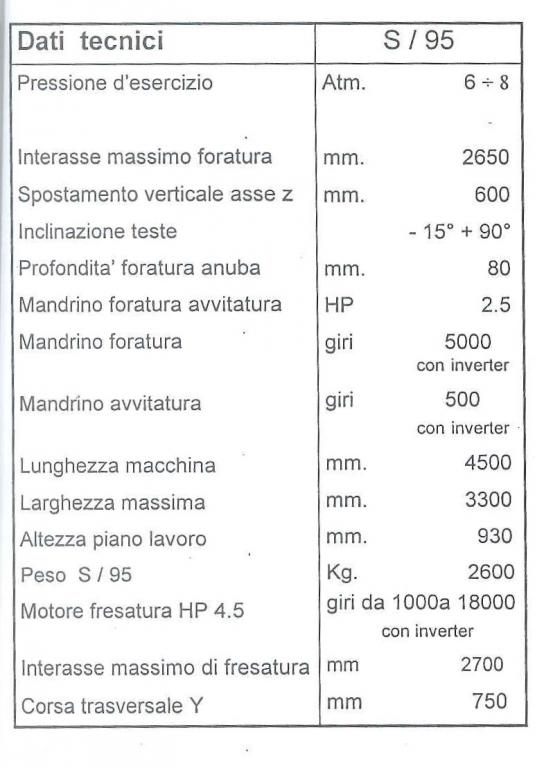

-distance between maximum drilling mm. 2650
-Vertical displacement Z-axis mm. 600
-Tilting heads -15 ° to + 90 °
-drilling depth hinge mm. 80
-Spindle drilling screwing hp. 2, 5
-spindle drilling Revolutions 5000 with inverter
-spindle screwing Revolutions 500 with inverter
-HP milling engine. 4.5 rpm from 1000 to 18000 with inverter
-Distance maximum milling mm. 2700
-Transverse stroke y mm. 750
-Machine length mm. 4500
-Maximum width mm. 3300
-Worktop height mm. 930
-Total machine height mm. 2100
-Maximum power installed KW. 7
-Operating pressure ATM. 6/8
-Weight machine kg. 2650
-EC Regulation
